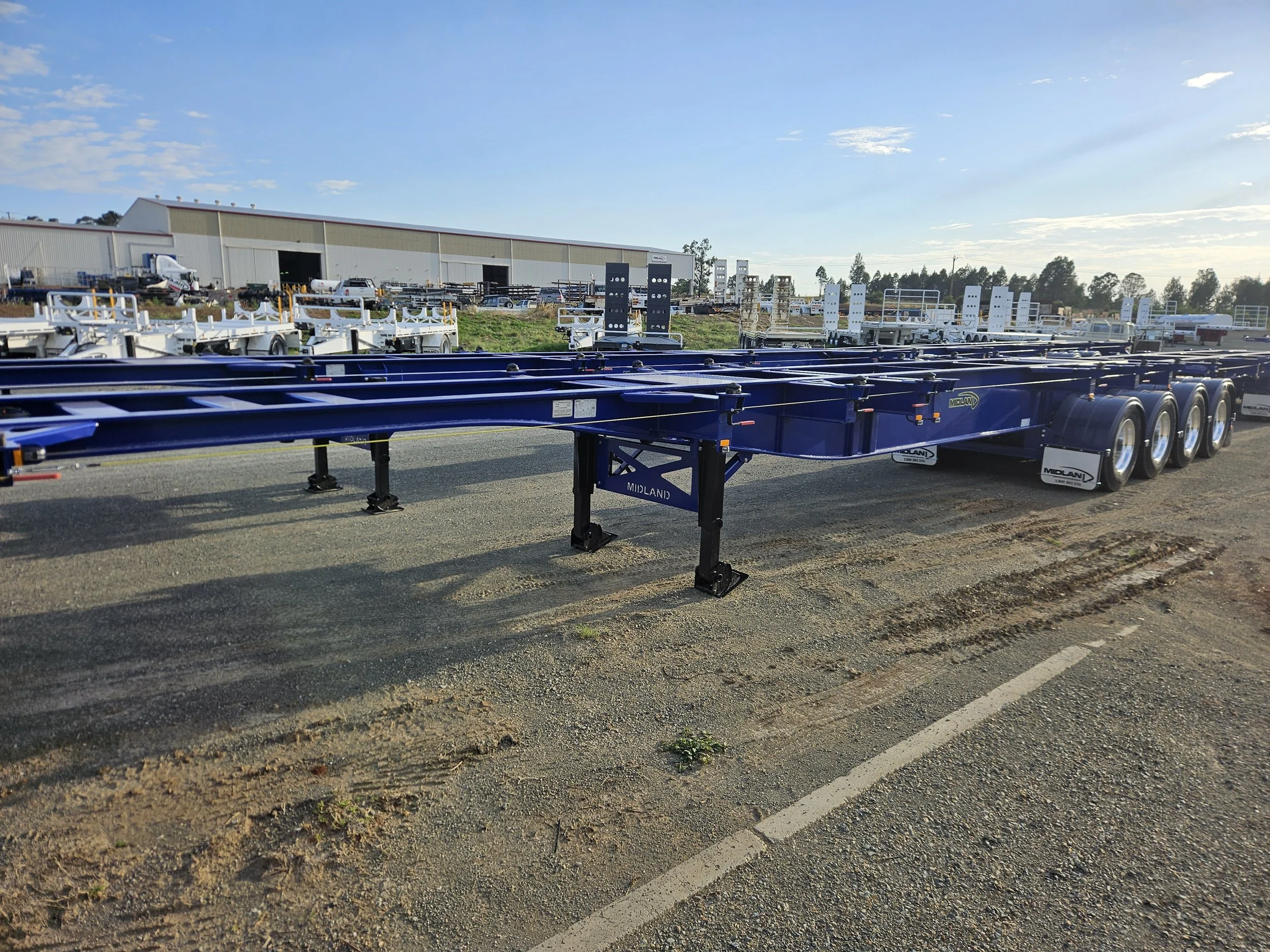

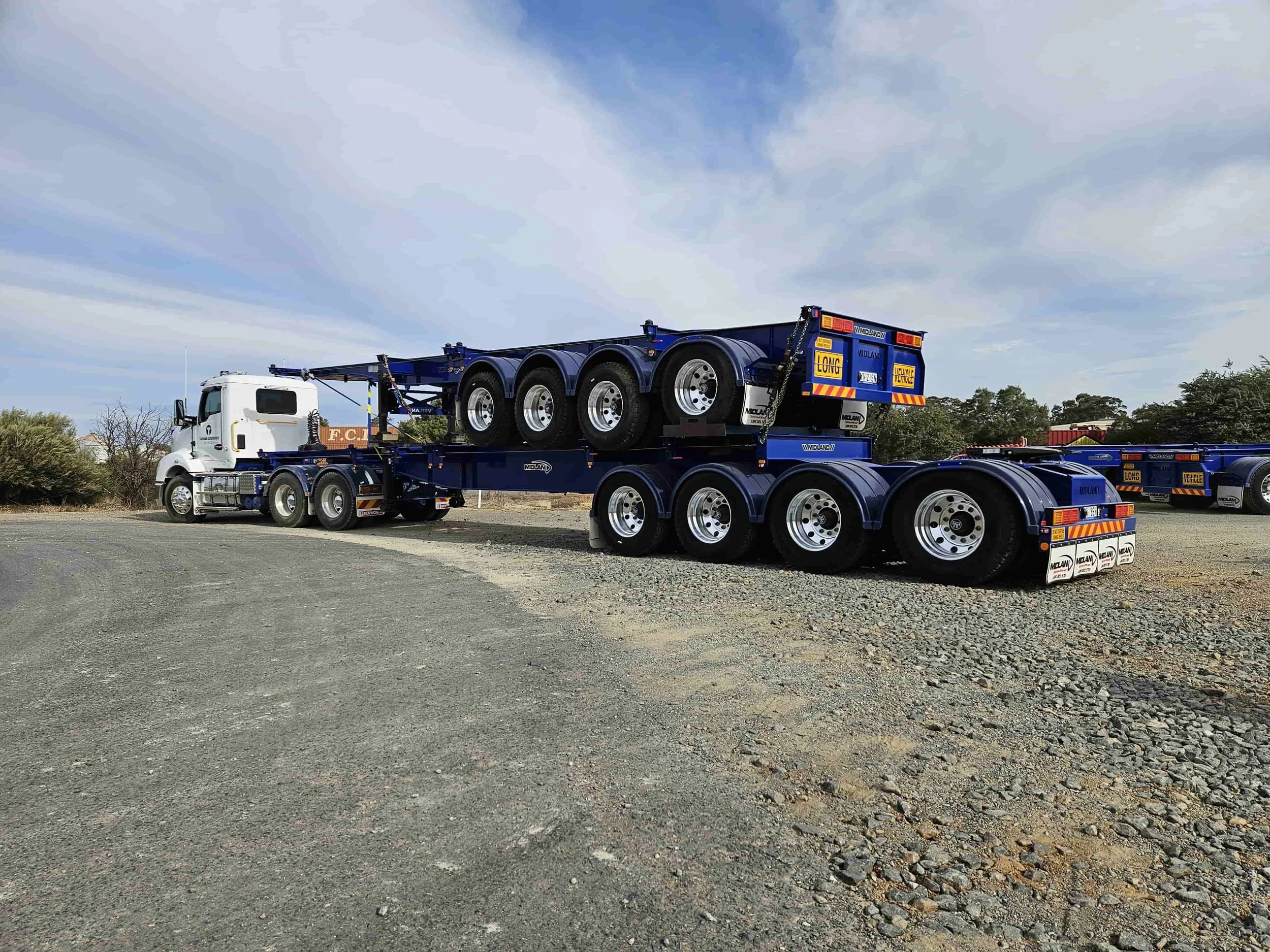

Midland Super B Double Quad Skel

$239,000 plus GST

Introducing Midland Super B Double Quad Skel Trailers, engineered for optimal efficiency in container transportation and tailored for seamless port logistics.

Features and Benefits:

  1. Space Blue Exterior: Enhances visibility and adds a professional touch to your fleet.

  2. Secure Hitch: Equipped with a 50mm Kingpin for reliable attachment and safe towing.

  3. Sturdy Build: With a Wheel Base of 10.075m on the Lead and 7.425m on the Tag, and an Axle Spread of 1250mm, ensuring stability and durability on various terrains.

  4. Optimal Dimensions: An Overall Height of 1375mm, Overall Length of 24.160m King Pin to Rear, and Overall Width of 2490mm, providing ample space for container transportation.

  5. Quality Components: Featuring BPW 20inch Axles, with BPW Steer Axles on the Rear, and BPW ALII underslung airbag Suspension with D30K airbag, ensuring reliable performance and minimal maintenance.

  6. Enhanced Safety: Equipped with Wabco EBS Drum Brakes and a comprehensive lighting system including Lucidity LED Fully Sealed Wiring Harness, ensuring visibility and safety during transportation.

  7. Convenience Features: Includes practical additions like a Spare Wheel with K-Hitch 2 Speed Legs, providing convenience and peace of mind during long hauls.

  8. Port Logistics Ready: Designed for efficient port logistics with features like 3 Way Pins, ZSide Loader Pads, and a robust build to withstand the demands of port operations.

  9. Efficiency Powerhouse: Rated for port use up to 117t in Brisbane and 130t in Melbourne, this level 3 PBS vehicle is optimized for maximizing cargo capacity and streamlining operations.

Unlock the Power of Efficiency with Midland's PBS Super B Double! Ready to get to work immediately, in stock and prepared to optimize your container transportation operations.

Technical Specifications

Previous
Previous

(Draft) Midland Drop Deck Trailer

Next
Next

Midland Lightweight 2-2 B-Double Skel

Product Range

Quick Links

About Midland

Midland Australian Made Stamp

©Midland Pty Ltd 2024. All rights reserved.

Colour:   Space blue
Hitch:   50mm Kingpin
Wheel Base:   10.075m On the Lead and 7.425m on the Tag
Axle Spread:   1250mm
Kingpin To Front:   1430mm
Overall Height (Front headboard):   1375mm
Overall Length:   24.160m King Pin to Rear
Axle:   BPW 20inch Axles, With BPW Steer Axles on the Rear
Suspension:   BPW ALII underslung airbag 215-250mm ride height D30K airbag
Brakes:   Wabco EBS Drum
Rims:   22.5" X 8.25" 10/285PCD MILL FINISH
Tyres:   11R 22.5" TRIANGLE OR SIMILAR
King Pin:   JOST 50mm BOLT-IN
Landing Legs:   K-Hitch two-speed
Mud Guards:   PLASTIC GUARDS; DARK BLUE
Container Locks:   3 Way Pins, With ZSide Loader Pads
Lights / Electrical:   Lucidity LED Fully Sealed Wiring Harness
Spare Wheel:   K-Hitch 2 Speed Legs
